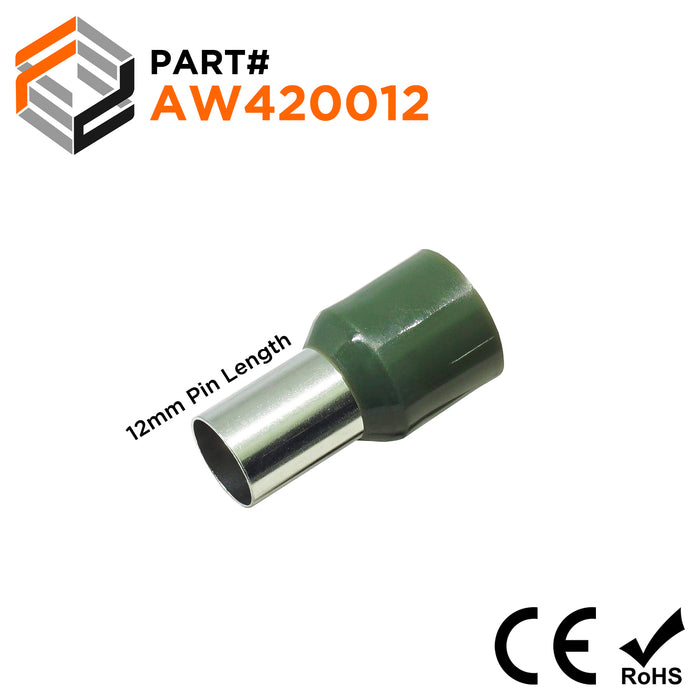

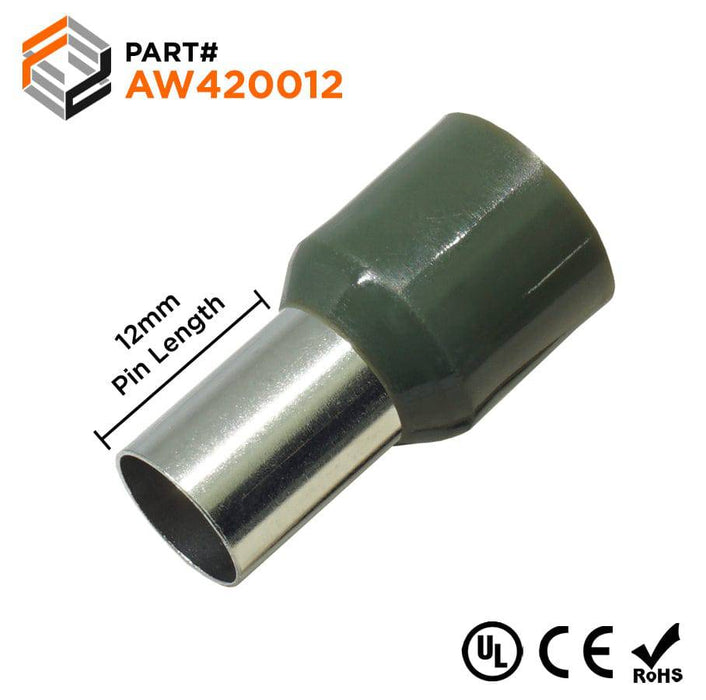

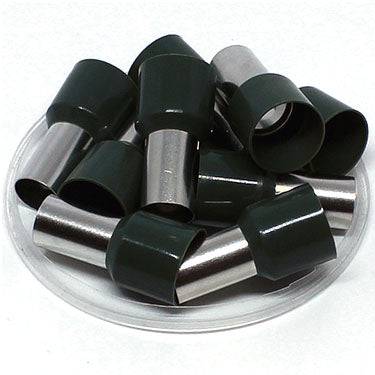

True 1 AWG (12mm Pin) Insulated Ferrules - Olive Green
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
|DIMENSIONS AND FEATURES|
|Wire Size:||True 1 AWG||UL Approved:||Yes|
|L1:||28.0mm (1.10")||RoHS Compliant:||Yes|
|L2:||12.0mm (.472")||Max Electrical Rating:||105°C (221°F) - 600 Volts|
|D:||9.2mm (.362")||Max Electrical Current:||195A|
|D1:||8.2mm (.323")||Material:||Tin Plated Copper|
How to Crimp a Wire Ferrule?
