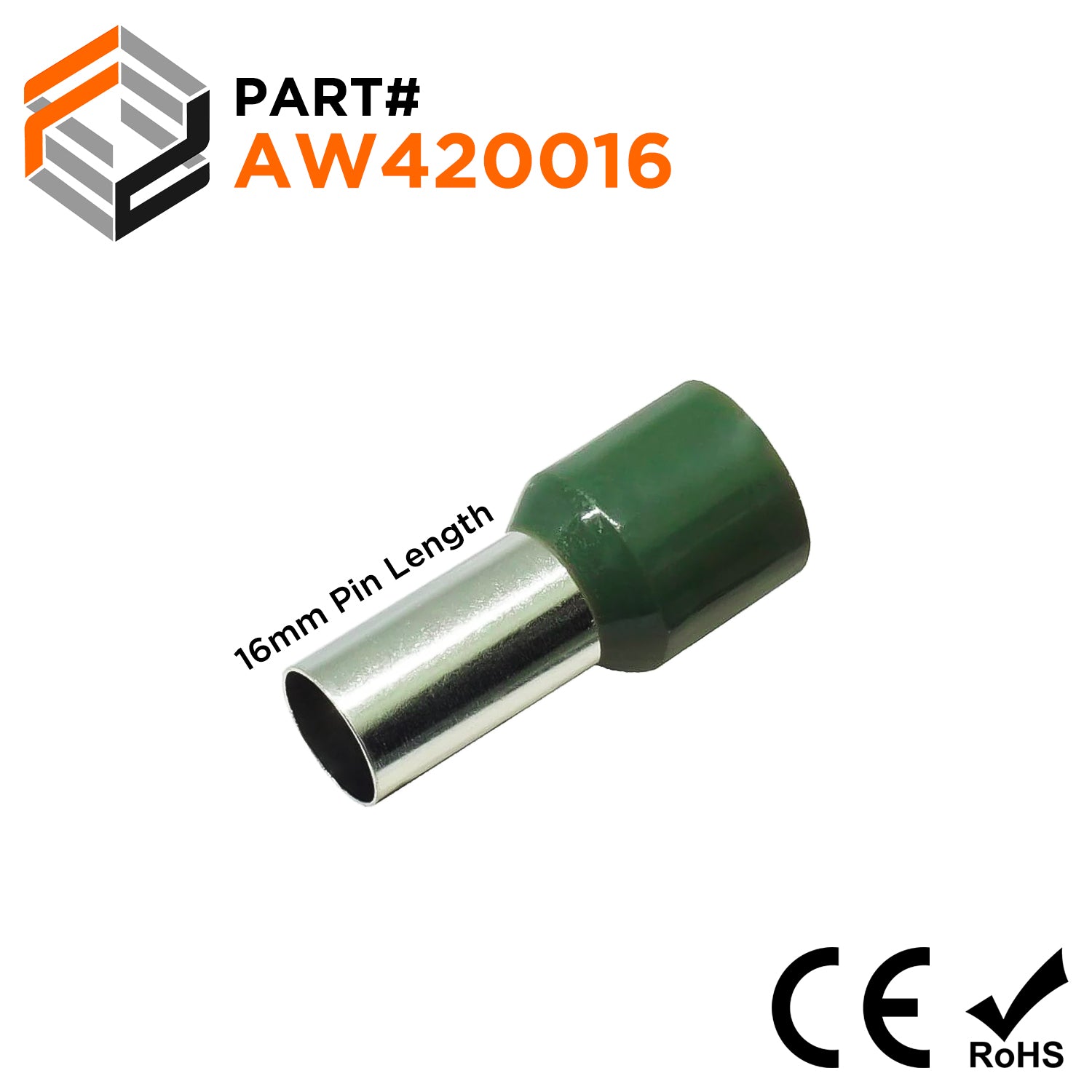

True 1 AWG (16mm Pin) Insulated Ferrules - Olive Green

$9.41
SKU AW420016
Piece Quantity
PRODUCT DESCRIPTION

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

DIMENSIONS AND FEATURES
Wire Size: True 1 AWG UL Approved: Yes
Color: Olive Green CE Certified: Yes
L1: 32.0mm (1.26") RoHS Compliant: Yes
L2: 16.0mm (.630") Max Electrical Rating: 105°C (221°F) - 600 Volts
D: 9.2mm (.362") Max Electrical Current: 195A
D1: 8.2mm (.323") Material: Tin Plated Copper
D2: 12.3mm (.484")

TECHNICAL DRAWING


Cross Reference:

Click to view data sheet

How to Crimp a Wire Ferrule?
