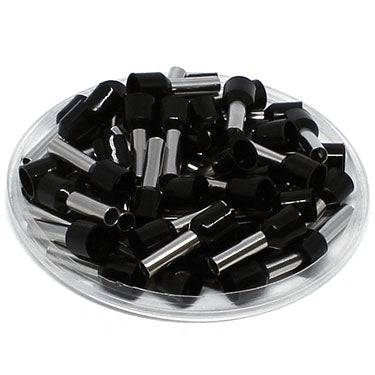

AW60009 - 10 AWG (9mm Pin) Insulated Ferrules - Black

$3.83
SKU AW60009M
Piece Quantity
PRODUCT DESCRIPTION

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

DIMENSIONS AND FEATURES
Wire Size: 10 AWG UL Approved: Yes
Color: Black CE Certified: Yes

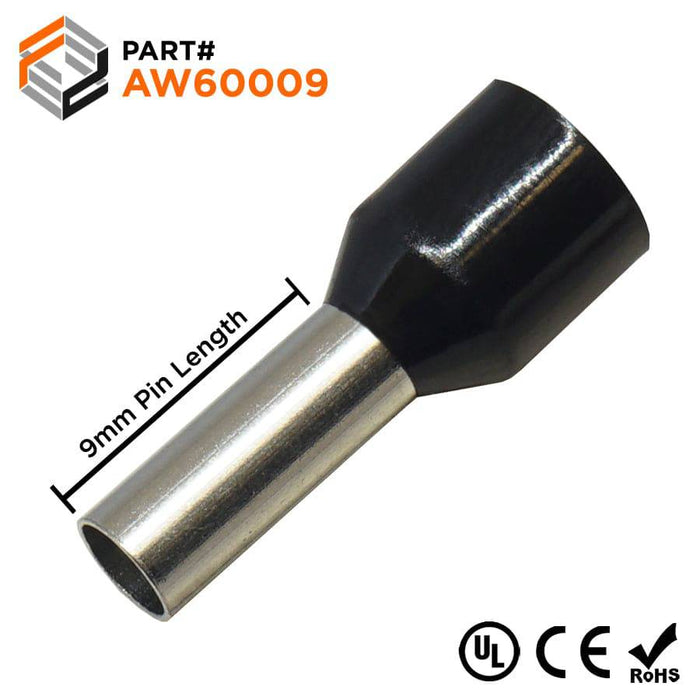

L1: 17.3mm (.681") RoHS Compliant: Yes
L2: 9.0mm (.354") Max Electrical Rating: 105°C (221°F) - 600 Volts
D: 3.9mm (.154") Max Electrical Current: 50A
D1: 3.5mm (.138") Material: Tin Plated Copper
D2: 6.3mm (.248")

TECHNICAL DRAWING

Cross Reference Parts:

None

Click to view data sheet

How to Crimp a Wire Ferrule?
