AW60012 - 10 AWG (12mm Pin) Insulated Ferrules - Black

$3.73
SKU AW60012
Piece Quantity
PRODUCT DESCRIPTION

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

DIMENSIONS AND FEATURES

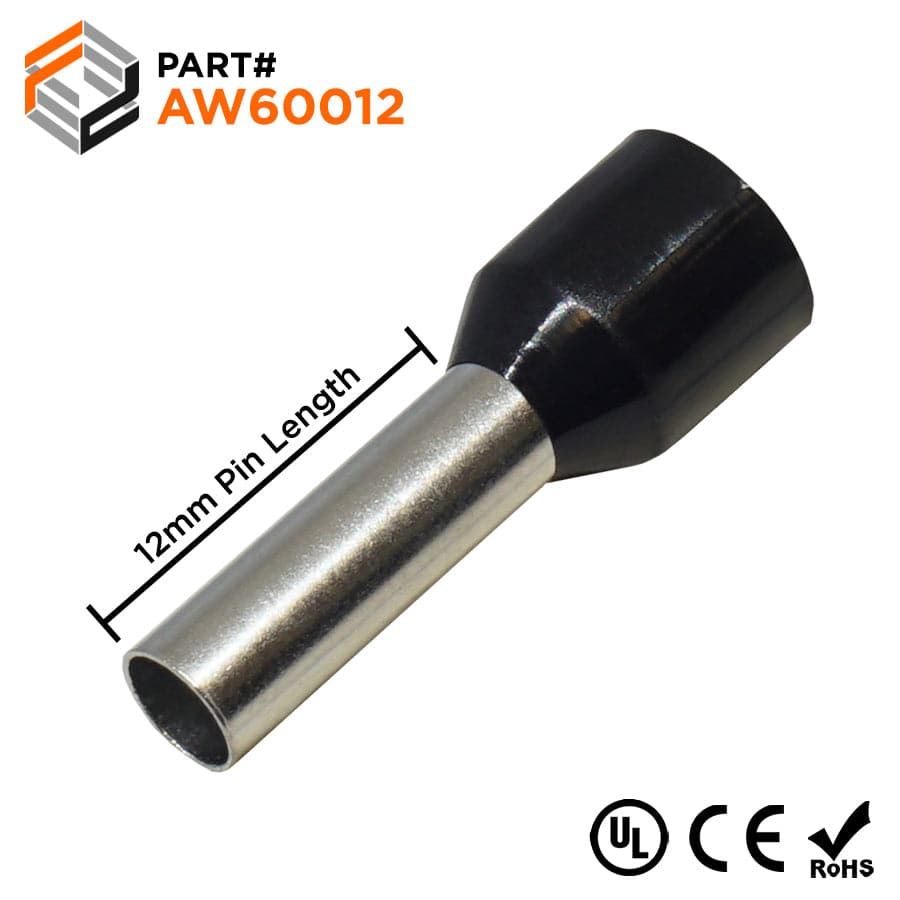

Wire Size: 10 AWG UL Approved: Yes
Color: Black CE Certified: Yes
L1: 20.0mm (.787") RoHS Compliant: Yes
L2: 12.0mm (.472") Max Electrical Rating: 105°C (221°F) - 600 Volts
D: 3.9mm (.154") Max Electrical Current: 50A
D1: 3.5mm (.138") Material: Tin Plated Copper
D2: 6.3mm (.248")

TECHNICAL DRAWING

Cross Reference Parts:

ABB: XUSG01879
Altech Corp: 2210.0 FII1012
American Electrical: 11122060
Automation Direct: BM-00510
Burndy: YF1012IW
Eclipse: 701-038
Greenlee: 175/S
Phoenix Contact: 3201107
SPC Technology: SPC4495 84N2029
TE Connectivity: 1-966066-5
Tyco AMP: 1-966 066-5
Weidmuller: 0533500000
ZF: V3AE0025 V30AE000025

Click to view data sheet

How to Crimp a Wire Ferrule?
