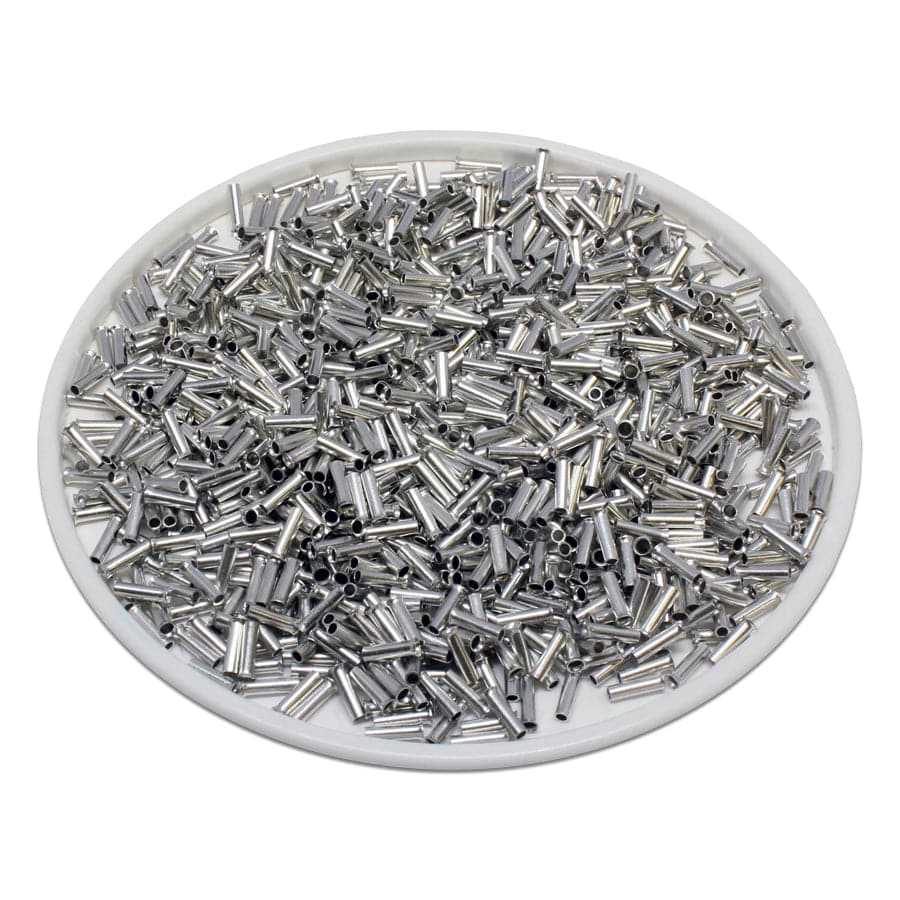

22 AWG (5mm Pin) Non Insulated Ferrules

$10.10
SKU N05005
Piece Quantity

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.


Dimensions & Features:

Wire Range: 22 AWG (0.50mm2)
Material: Tin-Plated Copper
L1: 5mm (0.19")
D: 1.3mm (0.05")
D1: 1mm (0.04")
D2: 1.7mm (0.06")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 9A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes
