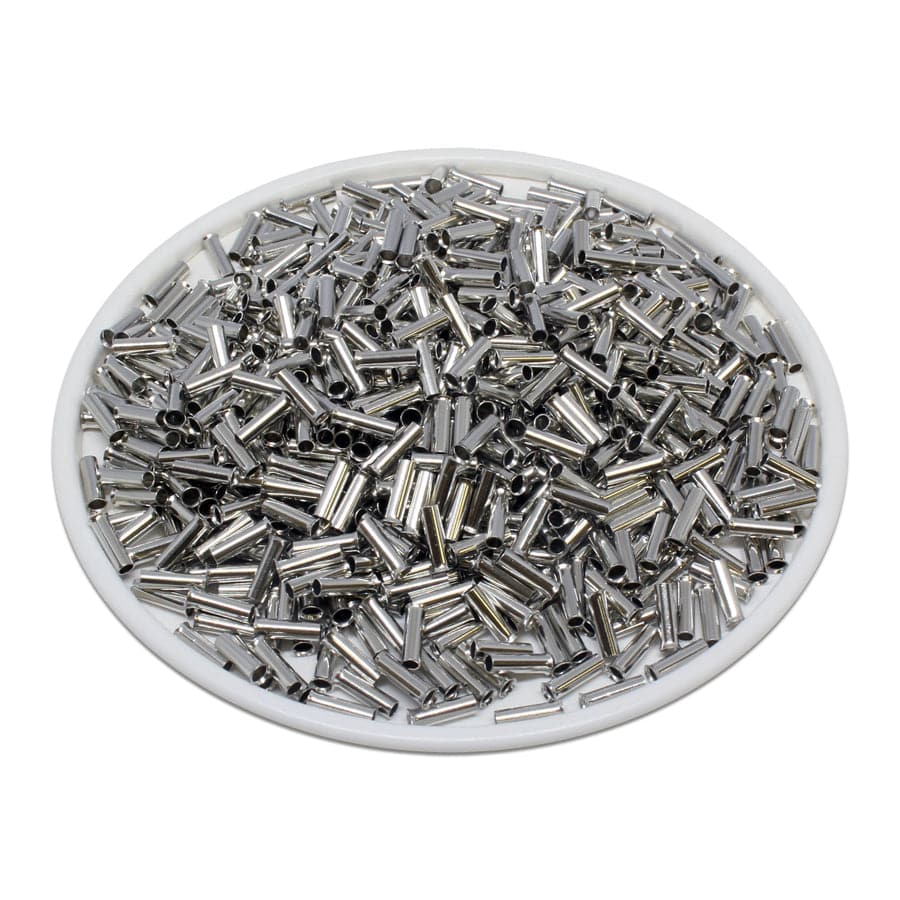

N10006 - 18AWG (6mm Pin) Non Insulated Ferrules
Original price
$11.44
-
Original price
$11.44
Original price
$11.44
$11.44
-
$11.44
Current price
$11.44
SKU N10006
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Range: | 18 AWG (1.00mm2) |
| Material: | Tin-Plated Copper |
| L1: | 6mm (0.23") |
| D: | 1.7mm (0.06") |
| D1: | 1.4mm (0.05") |
| D2: | 2.2mm (0.08") |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 18A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:ABB: 30457307
Altech Corp: 2219.0
American Electrical: 12610100
Burndy:10097766 YF1806UI
Hubbell: 10097766 YF1806UI
Cembre: KE106ST
Eclipse: 701-050
Greenlee: 72S/6VZ
Panduit: F77-6-M
Phoenix Contact: 3200247
Thomas Betts: F9005
WAGO: 216-123
Weidmuller: 372600000
Weland: 06.600.4227.0
ZF: V3AE9051
Documents
Click to view product spec sheet:
