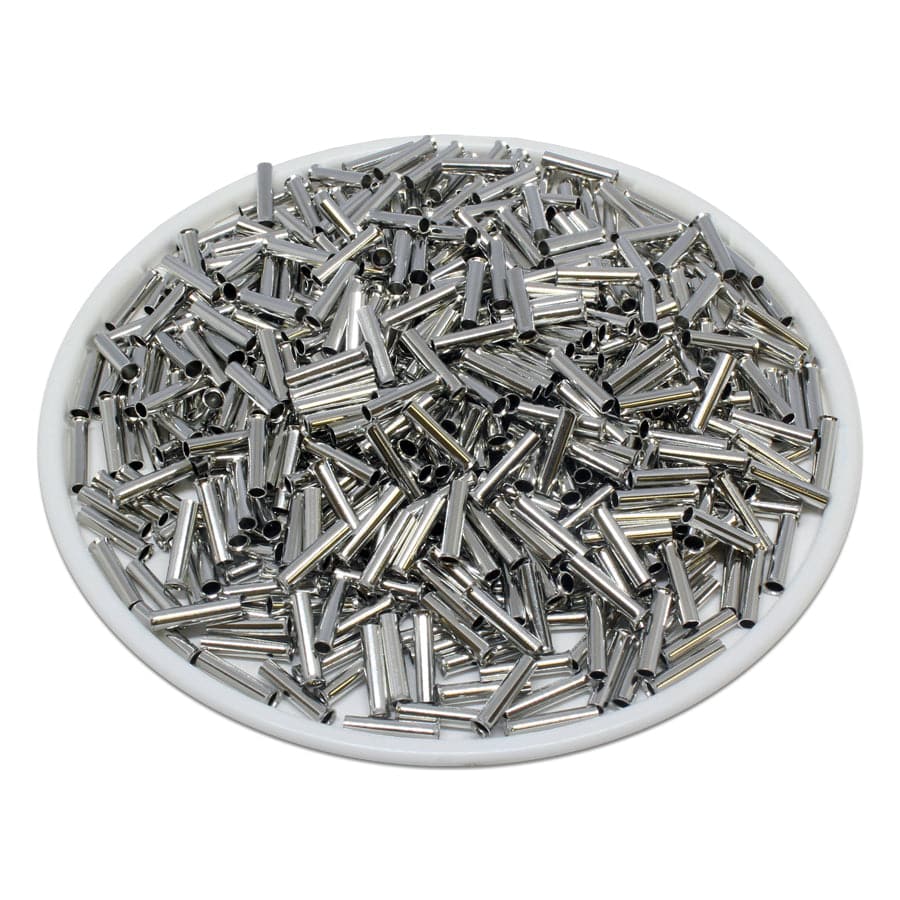

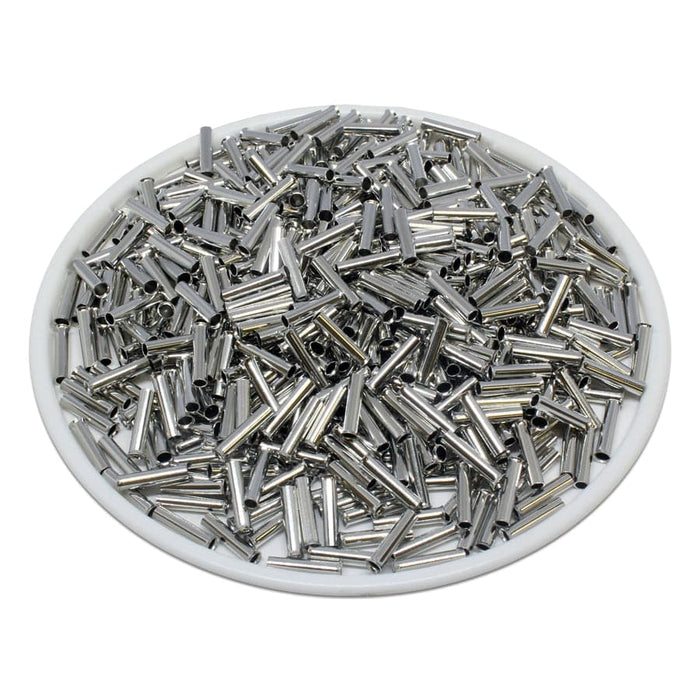

N10008 - 18AWG (8mm Pin) Non Insulated Ferrules

Original price $12.42 - Original price $12.42
Original price
$12.42 - $12.42
Current price $12.42
SKU N10008
in stock, ready to be shipped
Piece Quantity: 1000 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Range: 18AWG
Material: Tin-Plated Copper
L1: 8mm (0.31")
D: 1.7mm (0.06")
D1: 1.4mm (0.05")
D2 2.5mm (0.09")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 18AMP
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes


Technical Drawing:

Cross References:

ABB: XUSG01961
American Electrical: 12810100
Burndy: 10097767 YF1808UI
Hubbell: 10097767 YF1808UI
Greenlee: 72S/8VZ
McMaster-Carr: 9681K54 9681K17
Panduit: F77-8-M
Phoenix Contact: 3202517
SPC Technology: SPC4540 84N2074
WAGO: 216-103
ZF: V3AE9395
