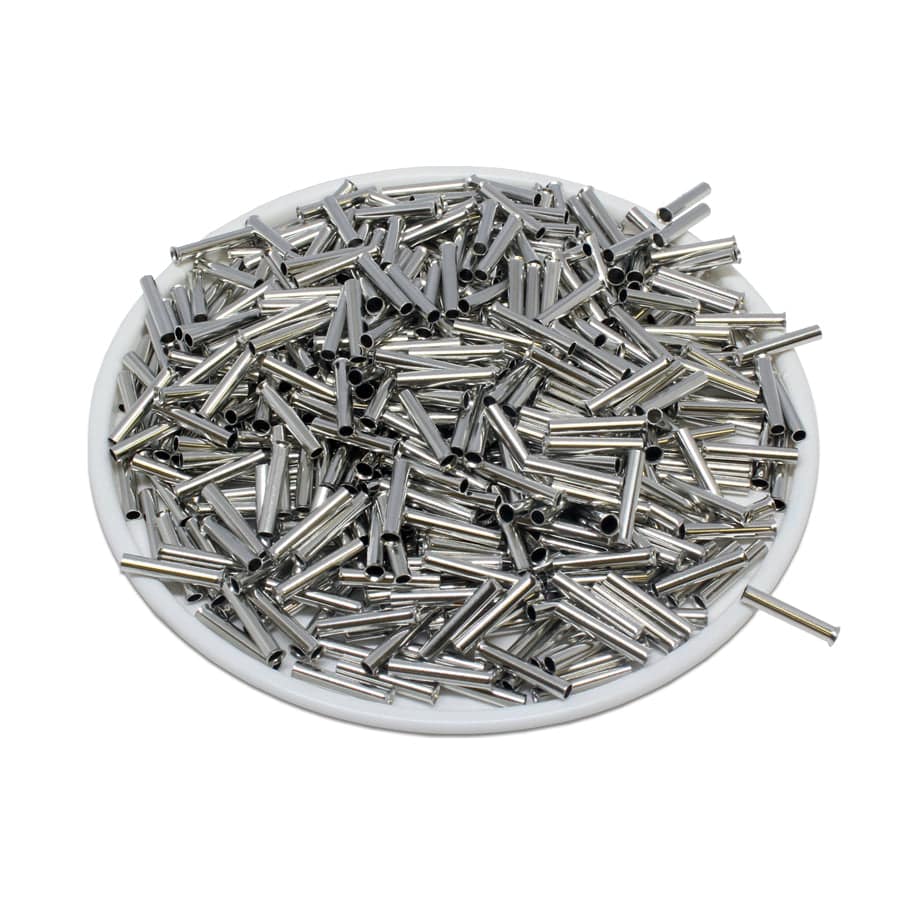

N10010 - 18AWG (10mm Pin) Non Insulated Ferrules

$13.04
SKU N10010
Piece Quantity

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.


Dimensions & Features:

Wire Range: 10 AWG (1.00mm2)
Material: Tin-Plated Copper
L1: 10mm (0.39")
D: 1.7mm (0.06")
D1: 1.4mm (0.05")
D2: 2.2mm (0.08")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 18A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:


Cross References

Cross Reference Parts:
ABB: 30457400
Altech Corp: 2220
American Electrical: 121010100
Burndy: YF1810UI
Cembre: KE110ST
Crimp Supply: 13A12006
Eclipse: 701-003
Elecdirect: FERN-18-10M
Greenlee: 72S/10VZ
McMaster-Carr: 9681K55 9681K18
Panduit: F77-10-M
Phoenix Contact: 3200250
SPC Contact: SPC4541 84N2075
Thomas Betts: F9006
WAGO: 216-143
Weidmuller: 282800000
ZF: V3AE9053
