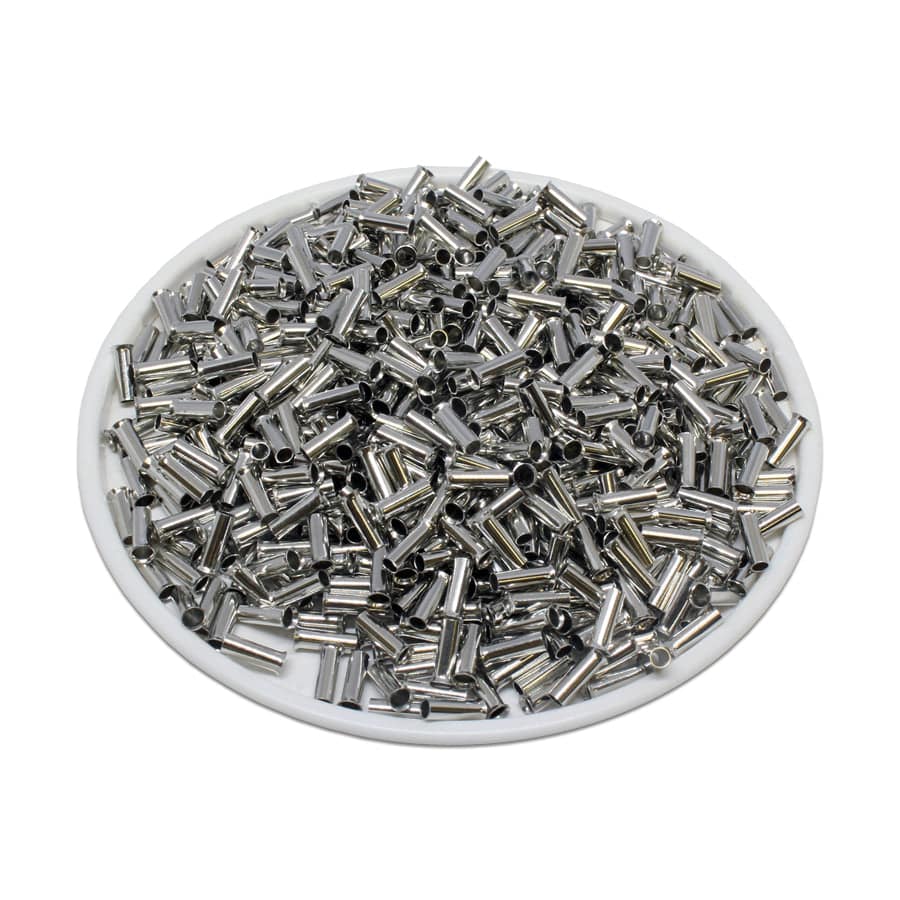

N15006 - 16AWG (6mm Pin) Non Insulated Ferrules

Original price $12.28 - Original price $12.28
Original price
$12.28
$12.28 - $12.28
Current price $12.28
SKU N15006
Availability:
in stock, ready to be shipped
Piece Quantity: 1000 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.


Dimensions & Features:

Wire Range: 16 AWG (1.50mm2)
Material: Tin-Plated Copper
L1: 6mm (0.24")
D: 2mm (0.08")
D1: 1.7mm (0.06")
D2 2.5mm (0.09")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 18A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes



Technical Drawing:
