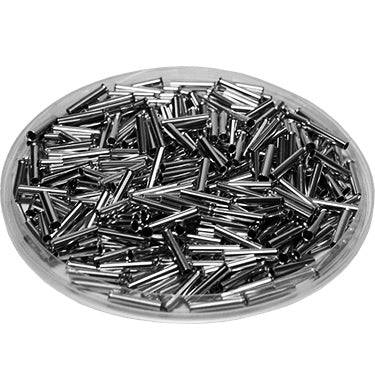

N15012 - 16AWG (12mm Pin) Non Insulated Ferrules

Original price $13.96 - Original price $13.96
Original price
$13.96 - $13.96
Current price $13.96
SKU N15012
in stock, ready to be shipped
Piece Quantity: 1000 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Range: 16 AWG (1.50mm2)
Material: Tin-Plated Copper
L1: 12mm (0.47")
D: 2mm (0.08")
D1: 1.7mm (0.06")
D2 2.5mm (0.09")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 18A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes


Technical Drawing:

Cross References

Cross References:

ABB: XUSG01965
American Electrical: 121210150
Burndy: 10097773 YF1612UI
Hubbell: 10097773 YF1612UI
Eclipse: 701-052
Greenlee: 72/12VZ
ITC: 001.512
McMaster-Carr: 9681K58 9681K22
Panduit: F78-10-M
Phoenix Contact: 3200263
SPC: SPC4543 84N2077
Thomas Betts: F9009
Weidmuller: 9004060000
ZF: V3AE9056
