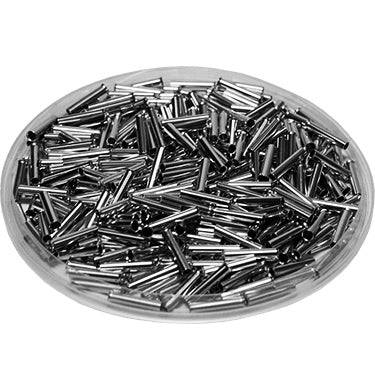

N15018 - 16AWG (18mm Pin) Non Insulated Ferrules
Original price
$15.53
-
Original price
$15.53
Original price
$15.53
$15.53
-
$15.53
Current price
$15.53
SKU N15018
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Range: | 16 AWG (1.50mm2) |
| Material: | Tin-Plated Copper |
| L1: | 18mm (0.71") |
| D: | 2mm (0.08") |
| D1: | 1.7mm (0.06") |
| D2 | 2.5mm (0.09") |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 18A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross References:ABB: XUSG01967
American Electrical: 121810150
Burndy Hubbell: 10097774 YF1618UI
Eclipse: 701-053
Greenlee: 72/18VZ
McMaster-Carr: 9681K61 9681K24
Panduit: F78-18-M
Phoenix Contact: 3202601
Thomas Betts: F9010
Weidmuller: 9004070000
ZF: V3AE9057
