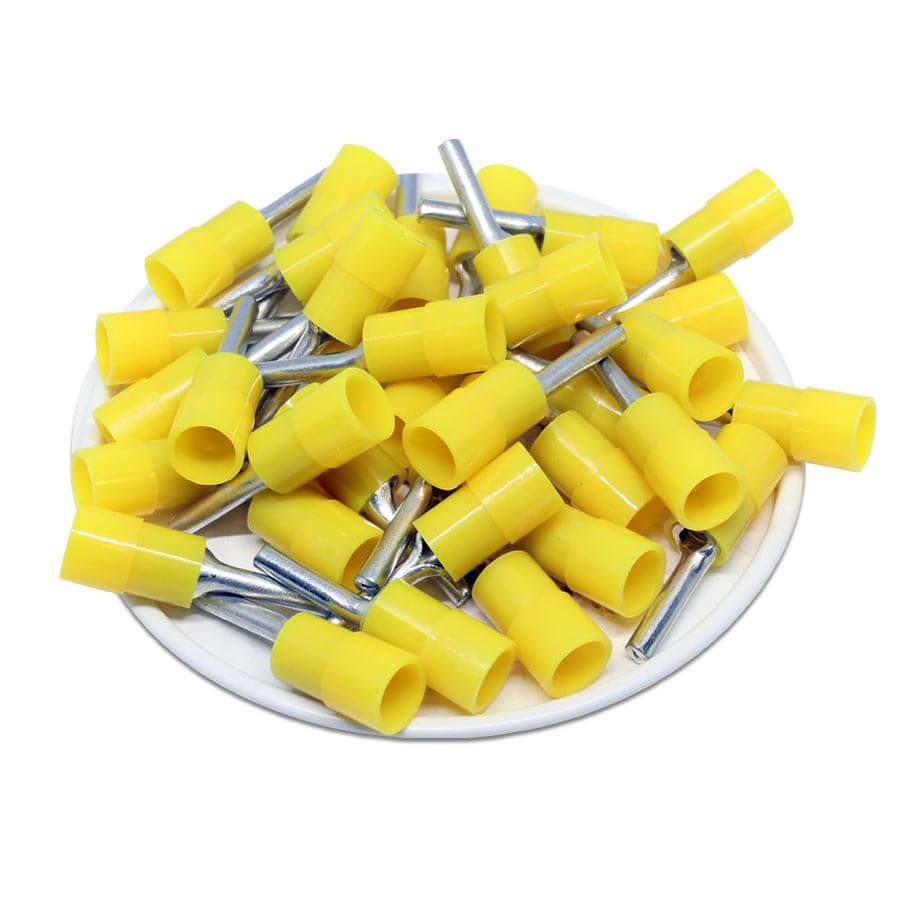

PTNYB5-13 - Nylon Insulated Pin Terminals - 12-10 AWG - Yellow

Name: PTNYB5-13 - Nylon Insulated Pin Terminals - 12-10 AWG - Yellow
Brand: Ferrules Direct
SKU: PTNYB5-13
Price: 19.41 USD
Availability: OutOfStock

Sold out

$19.41 - $19.41

$19.41

$19.41 - $19.41

$19.41

SKU PTNYB5-13

Pack Quantity: 100 Pieces

Availability:

Out of stock

Quantity

false

Sold Out - Click to Inquire!

NYLON INSULATED PIN TERMINALS

Pin terminals are used to connect cables and wires to an electrical system. They are commonly used to connect wires to terminal blocks. For standard applications, pin terminals provide quick and easy connections when using of screw or clamp type blocks. However, they can also be used in applications where a slight reduction in wire circumference is needed for tight spaces.

COMPARE TO THESE PARTS:

/* if no javascript: get back ATC button */ body:not(.spo-loaded) [data-shopify="payment-button"], body:not(.spo-loaded).template-product form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-collection form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-index form[action="/cart/add"] [type=submit], body:not(.spo-loaded) form[action="/cart/add"] [type=submit] {opacity: 1; pointer-events: all} body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) button, body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="submit"], body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="button"], body:not(.spo-loaded) [name="checkout"], body:not(.spo-loaded) [name="goto_pp"], body:not(.spo-loaded) [name="goto_amazon_payments"] {opacity: 1; pointer-events: all}

PRODUCT INFORMATION
Wire Size	12-10 AWG
Color	Yellow
Datasheet (PDF)	Download file

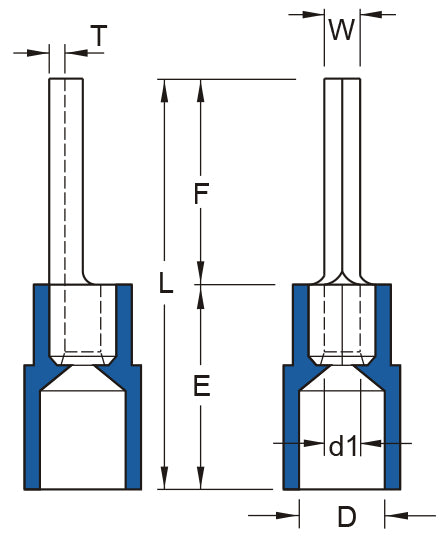

Overall Length (L)	27.0mm (1.06")
Pin Width (W)	2.8mm (0.11")
Pin Length (F)	14.0mm (0.55")
Insulation Length (E)	13.0mm (0.51")
Insulation Inner Diameter (D)	7.0mm (0.28")
Terminal Inner Diameter (D1)	3.4mm (0.13")
Pin Thickness (T)	1.0mm (0.039")
Material	Tin Plated Copper
Insulation Material	Nylon
Maximum Electrical Rating	600V
Maximum Electrical Current	50AMP
Maximum Operating Temperature	105°C (221°F)
UL Recognized	Yes
UL File Number	E96029
CE Certified	Yes
RoHS Compliant	Yes
REACH Compliant	Yes
Recommended Hand Tools	FDT10010 \| FDT10011 \| KST2000A
Recommended Crimping Machines	FD110K
