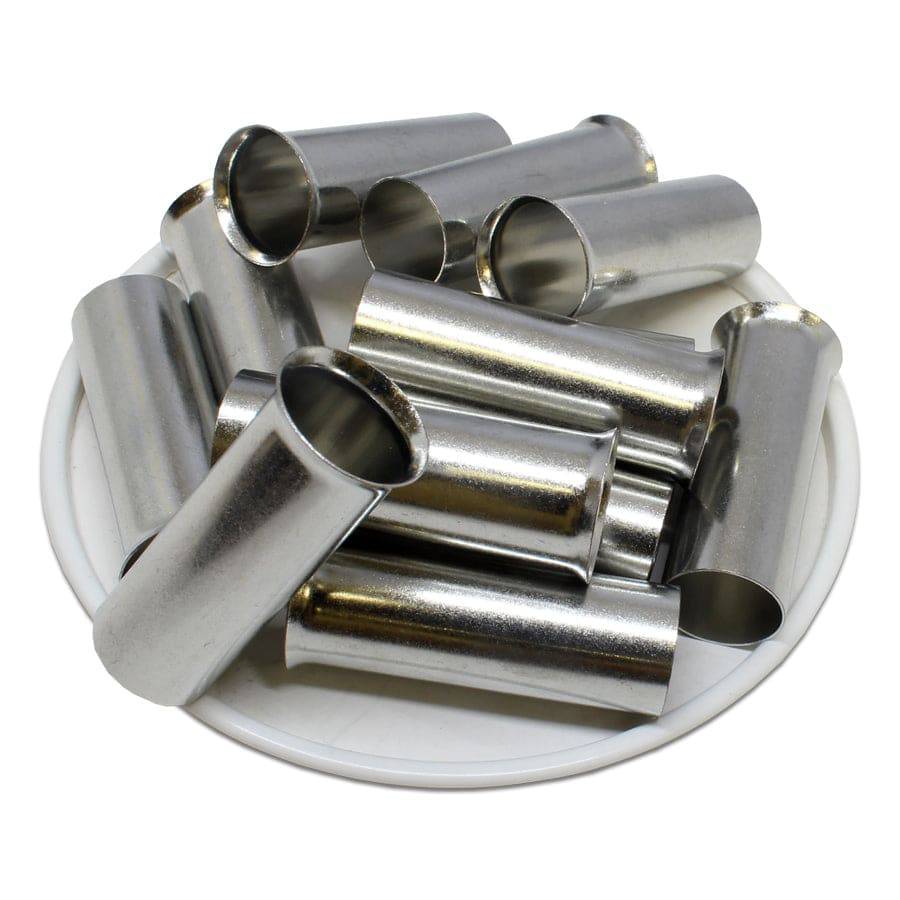

SF530032 - True 1/0 AWG (32mm Pin) Non Insulated Ferrules
Original price
$26.70
-
Original price
$26.70
Original price
$26.70
$26.70
-
$26.70
Current price
$26.70
SKU SF530032
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
None
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Wire Size: | True 1/0 AWG |
L1: | 32mm (1.26") |
D: | 11.1mm (0.44") |
D1: | 10.5mm (0.41") |
D2: | 13mm (0.51") |
Material: | Tin Plated Copper |
UL Approved: | No |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Max Electrical Rating: | Up to 2000V |
Max Electrical Current: | 230A |
Product Drawing:
Cross References
Cross Reference Parts:None
