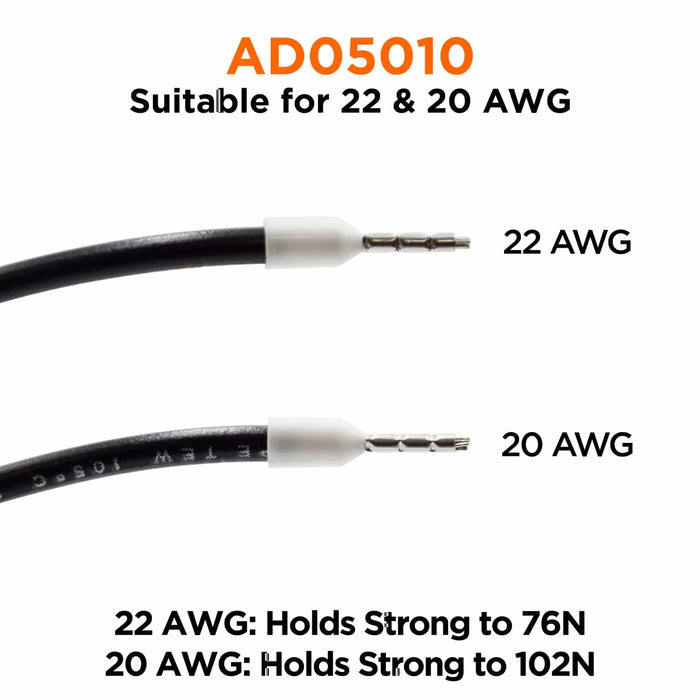

AD05010 - 22 & 20 AWG (10mm Pin) Insulated Ferrules - White

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Technical Drawing:

Cross References

Cross Reference Parts:
ABB: XUSD01834
Altech Corp: 2865.0 FID2010
American Electrical: 11103050 11101050
Greenlee: 469/10
McMaster-Carr: 7950K83 7950K13
Panduit: FSF75-10-D FSD75-10-D
Phoenix Contact: 3203105 3201275
Power Phase - Fastenal: 0749602
SPC Technology: SPC4506 84N2040
Thomas Betts: F2022
Tyco AMP: 966-- 067-3
WAGO: 216-241 51018073
Weidmuller: 9202910000 9019020000
ZF: V3AE0039
