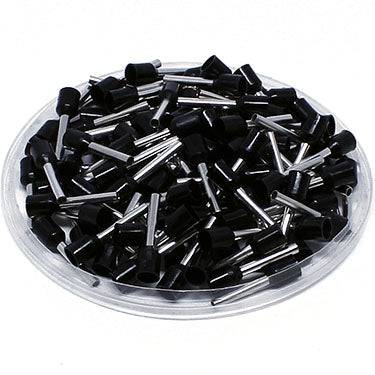

AD15010 - 16AWG (10mm Pin) Insulated Ferrules - Black

Precio original $7.60 - Precio original $7.60
Precio original
$7.60
$7.60 - $7.60
Precio actual $7.60
SKU AD15010
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 500 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 16 AWG
Color: Black
Material: Tin Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 18A
L1: 16mm (0.63")
L2: 10.0mm (0.39")
D: 2.0mm (0.08")
D1: 1.7mm (0.06")
D2: 3.5mm (0.14")
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

ABB: XUSD01859
Altech Corp: 2842.0 FID1610
American Electrical: 11103015 - 11101015
Automation Direct: V3AE000049
Eclipse: 701-122
Elecdirect: FER-16-10D
Greenlee: 472/10
McMaster-Carr: 7950K95 7950K24
Panduit: FSF78-10-D
Phoenix Contact: 3203134
Power Phase - Fastenal: 0749613

SPC Technology: SPC4517 84N2051
Thomas Betts: F2032
Tyco AMP: 1-966 067-3
WAGO: 216-244
Weidmuller: 9019130000
ZF: V3AE0049 V3AE000049

Documents

Click to view product spec sheet:
