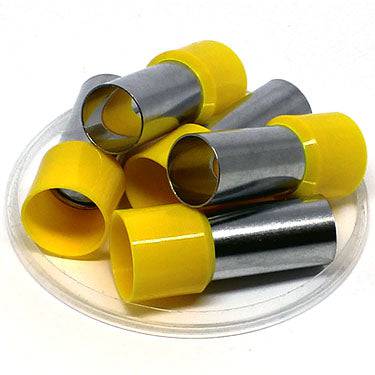

AD700020 - 2/0 AWG (20mm Pin) Insulated Ferrules - Yellow

$11.26
SKU AD700020
Piece Quantity
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 2/0 AWG
Color: Yellow
L1: 37.0mm (1.48")

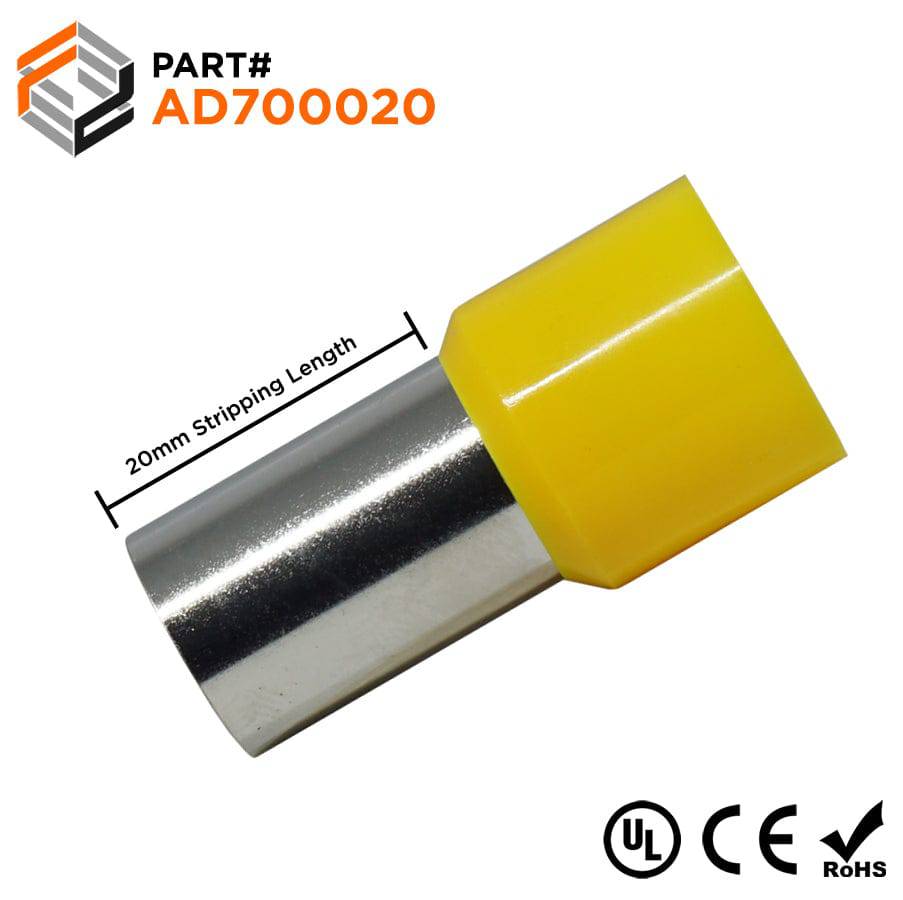

L2: 20mm (0.79")
D: 14.3mm (0.56")
D1: 13.5mm (0.53")
D2: 16mm (0.63")
UL Approved: Yes
CE Certfied: Yes
RoHS Compliant: Yes
Max Electrical Rating: 105oC (221oF) - 600 Volts
Max Electrical Current: 265A
Material: Tin-Plated Copper

Technical Drawing:


Cross References

Cross Reference Parts:
None ABB:XUSG01912
Altech Corp:2786.0
American Electrical:11201700
Crimp Supply:701-045
McMaster-Carr:7950K64
Phoenix Contact:3201848
Tyco AMP:3-966 292-9
Weidmuller:9028200000
ZF:V3AE1658
