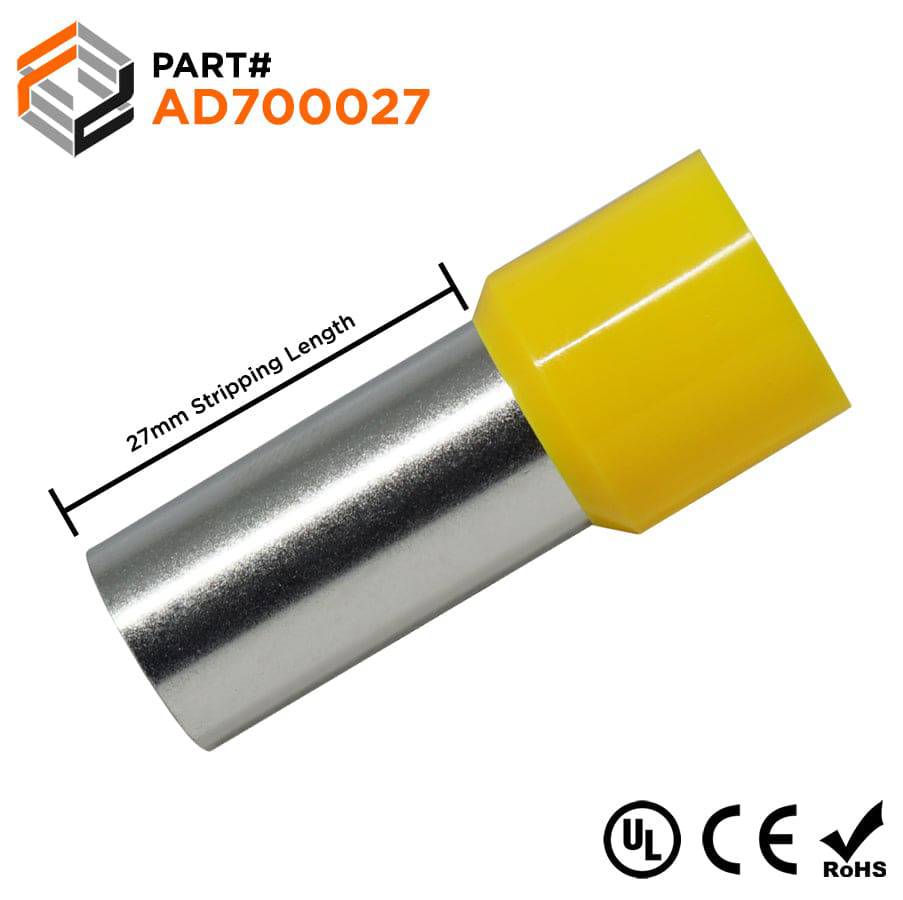

AD700027 - 2/0 AWG (27mm Pin) Insulated Ferrules - Yellow
Precio original
$15.23
-
Precio original
$15.23
Precio original
$15.23
$15.23
-
$15.23
Precio actual
$15.23
SKU AD700027
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Technical Drawing:
McMaster-Carr:7950K66
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 2/0 AWG |
| Color: | Yellow |
| L1: | 44.0mm (1.73") |
| L2: | 27mm (1.06") |
| D: | 14.3mm (0.56") |
| D1: | 13.5mm (0.53") |
| D2: | 16mm (0.63") |
| UL Approved: | Yes |
| CE Certfied: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Rating: | 105oC (221oF) - 600 Volts |
| Max Electrical Current: | 265A |
| Material: | Tin-Plated Copper |
Technical Drawing:
Cross References
Cross Reference Parts:McMaster-Carr:7950K66
Documents
Click to view product spec sheet:
Videos
How to Crimp a Wire Ferrule?
