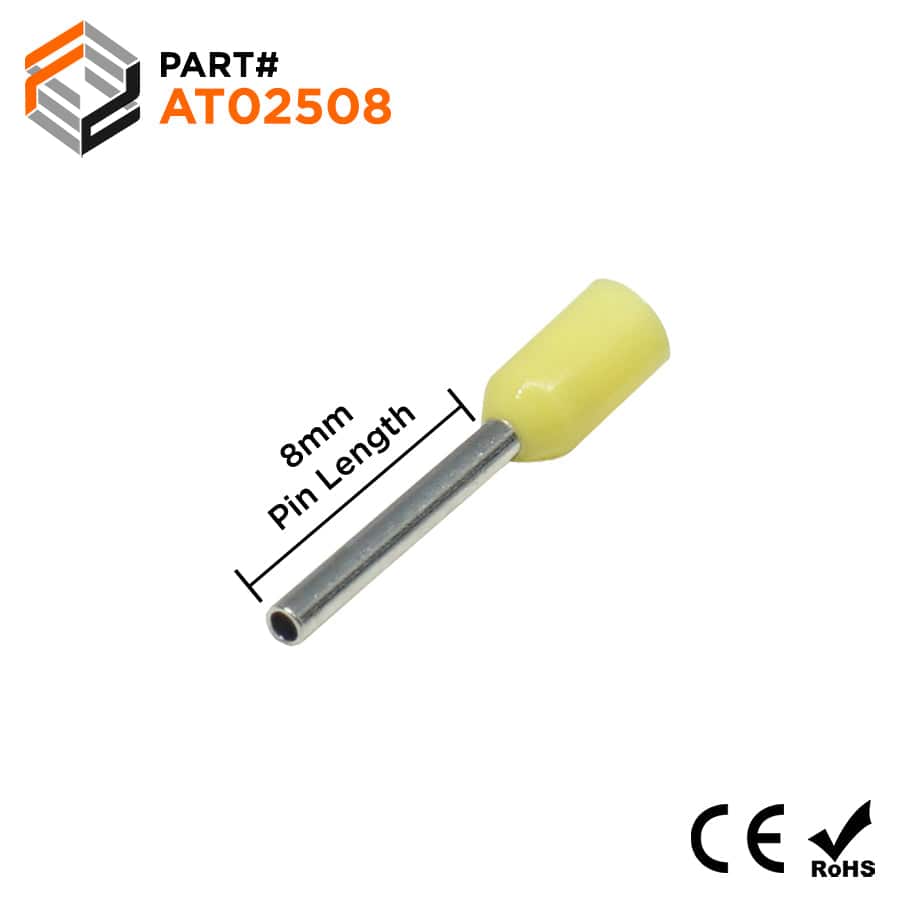

AT02508 - 24 AWG (8mm Pin) Insulated Ferrules - Yellow
Precio original
$9.84
-
Precio original
$9.84
Precio original
$9.84
$9.84
-
$9.84
Precio actual
$9.84
SKU AT02508
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
American Electrical: 11810025
Elecdirect: FER-24-8D
Greenlee: 167/8
McMaster-Carr: 7950K44
Panduit: FSD73-8-D
Phoenix Contact: 3203037
Power Phase - Fastenal: 0749597
Thomas Betts: F4007
Tyco AMP: 966 292-4
WAGO: 216-301
Weidmuller: 9021020000
Dimensions & Features:
| Wire Size: | 24 AWG |
| Color: | Yellow |
| L1: | 12.4mm (0.488") |
| L2: | 8.0mm (0.315") |
| D: | 1.1mm (0.043") |
| D1: | 0.8mm (0.031") |
| D2: | 1.6mm (0.062") |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Rating: | 105oC (221oF) - 600 Volts |
| Max Electrical Current: | 7A |
Technical Drawing:
Cross References
ABB: XUSD01809American Electrical: 11810025
Elecdirect: FER-24-8D
Greenlee: 167/8
McMaster-Carr: 7950K44
Panduit: FSD73-8-D
Phoenix Contact: 3203037
Power Phase - Fastenal: 0749597
Thomas Betts: F4007
Tyco AMP: 966 292-4
WAGO: 216-301
Weidmuller: 9021020000
