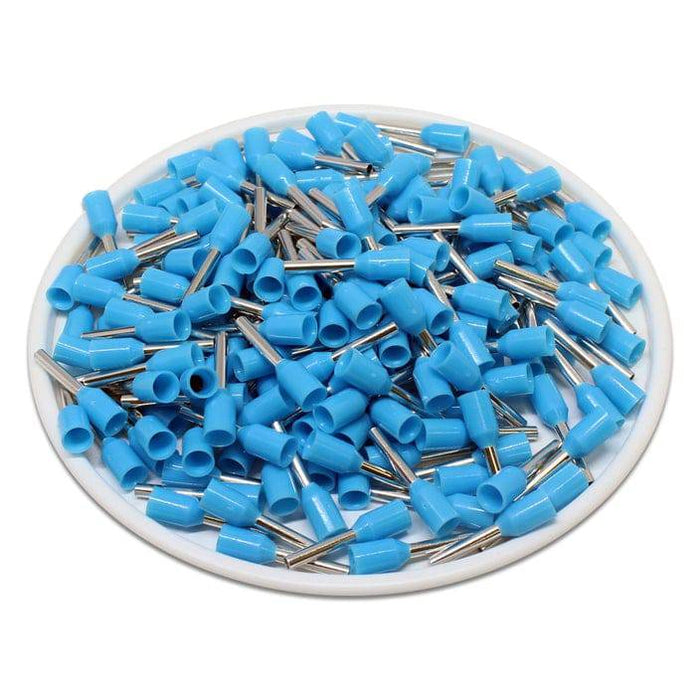

AT07508L - 20 AWG (8mm Pin) Insulated Ferrules - Blue - Large Cap

Precio original $7.68 - Precio original $7.68
Precio original
$7.68
$7.68 - $7.68
Precio actual $7.68
SKU AT07508L
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 500 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 20 AWG
Color: Blue
L1: 14mm (0.55")
L2: 8.0mm (0.32")
D: 1.57mm (0.062")
D1: 1.2mm (0.047")
D2: 3.2mm (0.125")
Material: Tin Plated Copper
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes
Max Electrical Rating: 105°C (221°F) - 600V
Max Electrical Current: 17A

Product Drawing:

Cross References

Cross Reference Parts:
ABB: XUS001841
American Electrical: 1183075
Crimp Supply: 13A11005
Greenlee: 170/8
LeGrand: 377 62
Panduit: FSF76-8-D
Phoenix Contact: 3200027
Thomas Betts: F4023
Tyco AMP: 1-966 292-1
Weidmuller: 9021040000
ZF: V3AE0537

Documents

Click to view product spec sheet:
