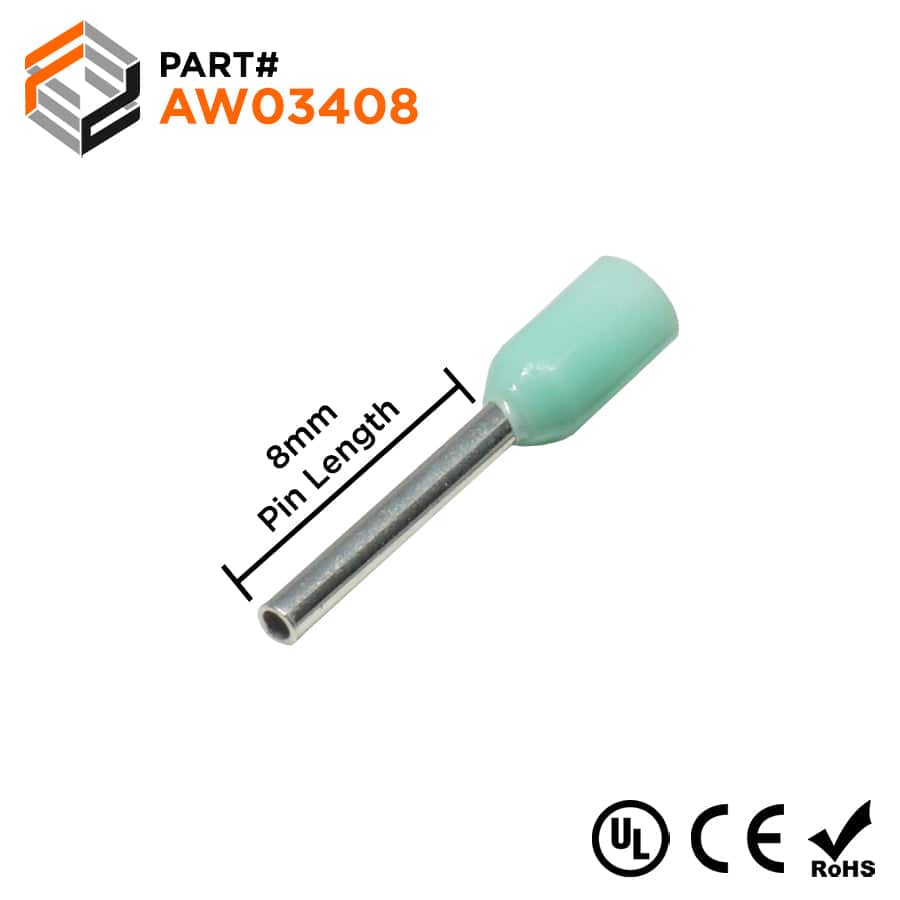

AW03408 - 22 & 24 AWG (8mm Pin) Insulated Ferrules - Turquoise

Precio original $0.00 - Precio original $0.00
Precio original $0.00
$9.84
$9.84 - $9.84
Precio actual $9.84
SKU AW03408
Disponibilidad:
en stock, listo para ser enviado
Quantity Options: 500 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 22 AWG & 24 AWG
Color: Turquoise
L1: 12.4mm (0.49")
L2: 8.0mm (0.315")
D: 1.15mm (0.045")
D1: 0.85mm (0.033")
D2: 2.0mm (0.079")
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes
Max Electrical Rating: 105oC (221oF) - 600 Volts
Max Electrical Current: 9A

Technical Drawing:




Cross References

Cross Reference Parts:
ABB: XUSD01821
Altech Corp: 2623.0 FII2208
American Electrical: 1181034 - 1182034
Burndy Hubbell: 10097991 YF2408IW
Eclipse: 701-027
GE Renewable Energy: 104W4400P002
Greenlee: 168/TL
Phoenix Contact: 3200865 3203066
Power Phase - Fastenal: 0749599
Thomas Betts: F4009
Tyco AMP: 966 066-4
WAGO: 216-302
Weidmuller: 9025790000 9025770000
ZF: V3AE0004
