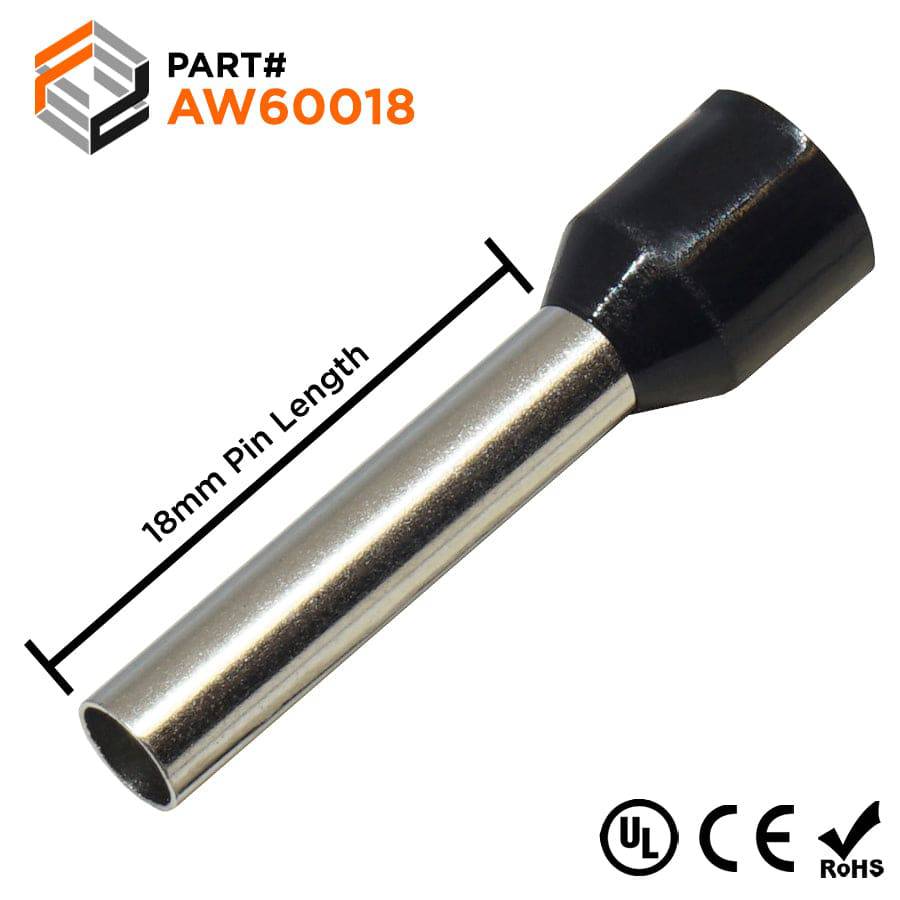

AW60018 - 10 AWG (18mm Pin) Insulated Ferrules - Black

Precio original $0.00 - Precio original $0.00
Precio original $0.00
$4.88 - $4.88
Precio actual $4.88
SKU AW60018
en stock, listo para ser enviado

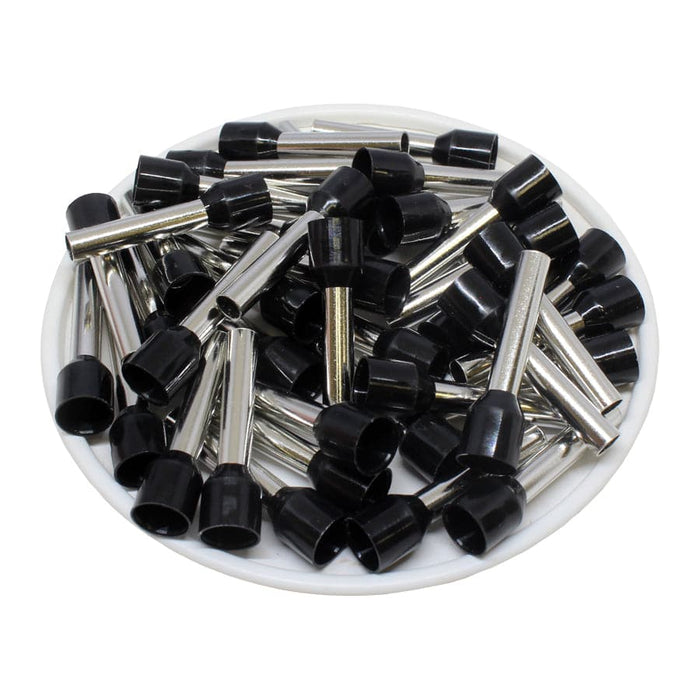

Pack Quantity: 100 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 10 AWG
Color: Black
Material: Tin Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 50A
L1: 26.0mm (1.02")
L2: 18.0mm (0.71")
D: 3.9mm (0.15")
D1: 3.5mm (0.14")
D2: 6.3mm (0.25")
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

ABB: XUSG01881
Altech Corp: 2211.0 FII1018
American Electrical: 11182060
Automation Direct: BM-00511 V30AE000026
Eclipse: 701-020
Greenlee: 175/SL
SPC Technology: SPC4496 84N2030
Tyco AMP: 3-966 066-3
Weidmuller: 565700000
ZF: V3AE0026 V30AE000026
