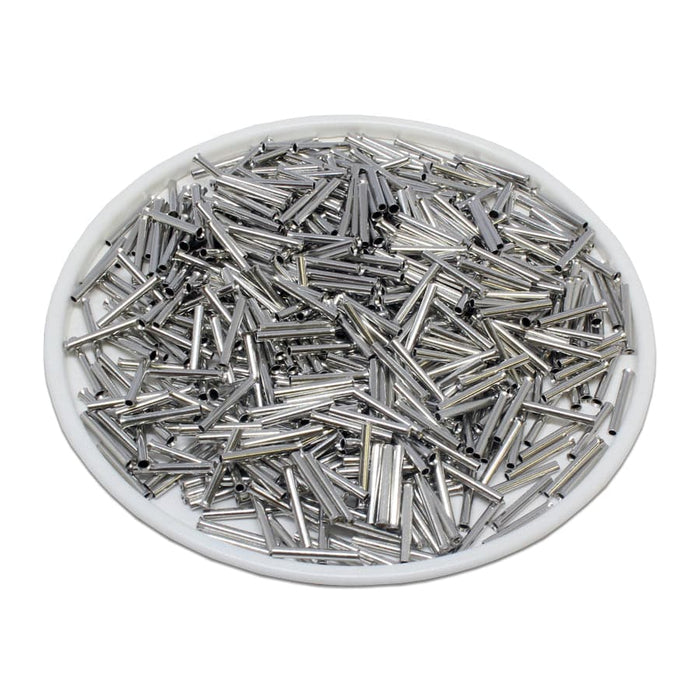

N05010 - 22 AWG (10mm Pin) Non Insulated Ferrules
Precio original
$11.18
-
Precio original
$11.18
Precio original
$11.18
$11.18
-
$11.18
Precio actual
$11.18
SKU N05010
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Range: | 22 AWG (0.50mm2) |
| Material: | Tin-Plated Copper |
| L1: | 10mm (0.39") |
| D: | 1.3mm (0.05") |
| D1: | 1mm (0.04") |
| D2: | 1.7mm (0.06") |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 12A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:ABB: XUSG01955
American Electrical: 121010050
Burndy: 10097761 YF2210UI
Hubbell: 10097761 YF2210UI
Crimp Supply: 13A12004
Eclipse: 701-048
Greenlee: 701-048
McMaster-Carr: 9681K53
Panduit: F75-10-M
Phoenix Contact: 3202494
Thomas Betts: F9002
WAGO: 216-141
ZF: V3AE9049
