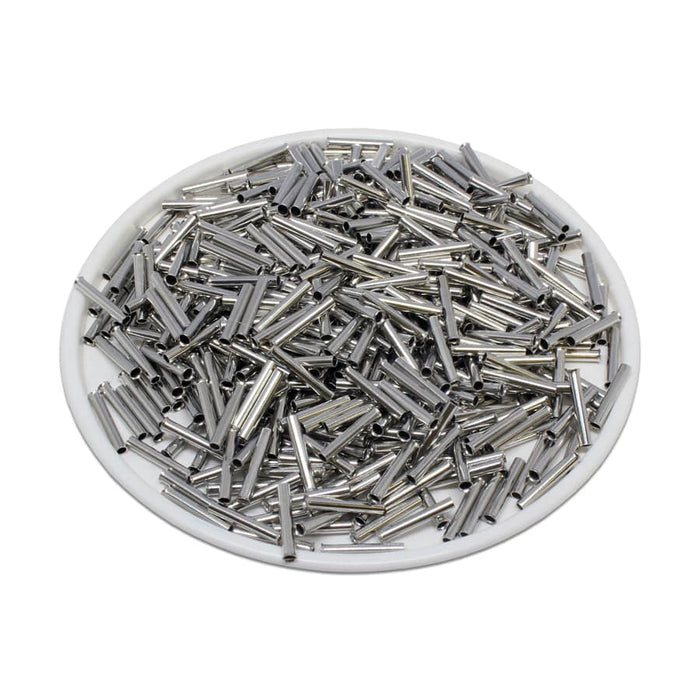

N07510 - 20 AWG (10mm Pin) Non Insulated Ferrules

Precio original $12.12 - Precio original $12.12
Precio original
$12.12 - $12.12
Precio actual $12.12
SKU N07510
en stock, listo para ser enviado
Piece Quantity: 1000 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Range: 20 AWG (0.75mm2)
Material: Tin-Plated Copper
L1: 10mm (0.39")
D: 1.5mm (0.05")
D1: 1.2mm (0.04")
D2: 1.9mm (0.07")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 17A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes


Technical Drawing:

Cross References

Cross Reference Parts:

ABB: XUSG01958
Altech Corp: 2218.0
American Electrical: 121010075
Bizlink: TEMP-150065620
Burndy: 10097764 YF2010UI
Hubbell: 10097764 YF2010UI

Crimp Supply: 13A12005
Eclipse: 701-049
Elecdirect: FERN-20-10M
Greenlee: 71/10VZ
Panduit: F76-10-M
Phoenix Contact: 3200234
Thomas Betts: F9004
WAGO: 216-142
Weidmuller: 542500000
ZF: V3AE9051
