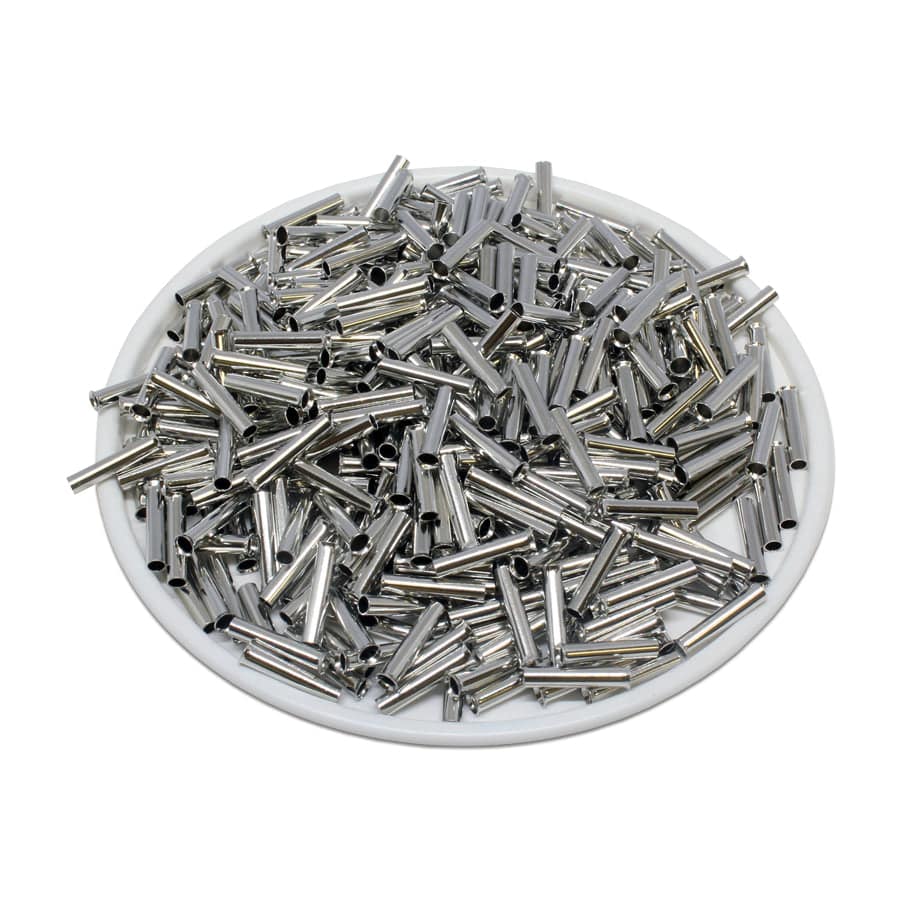

N15010 - 16AWG (10mm Pin) Non Insulated Ferrules
Precio original
$13.70
-
Precio original
$13.70
Precio original
$13.70
$13.70
-
$13.70
Precio actual
$13.70
SKU N15010
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Range: | 16 AWG (1.50mm2) |
| Material: | Tin-Plated Copper |
| L1: | 10mm (0.39") |
| D: | 2mm (0.08") |
| D1: | 1.7mm (0.06") |
| D2 | 2.5mm (0.09") |
| Max Electrical Rating: | Up to 2000V |
| Max Electrical Current: | 18A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross References:ABB: 30457602
Altech Corp: 2222.0
American Electrical: 121010150
Bizlink: TEMP-150065618
Burndy: 10097772 YF1610UI
Hubbell: 10097772 YF1610UI
Cembre: KE1510ST
Eclipse: 701-051
Crimp Supply: 13A12007
Greenlee: 72/10VZ
McMaster-Carr: 9681K58 9681K22
Panduit: F78-10-M
Phoenix Contact: 3200263
SPC Technology: F9007
Weidmuller: 372700000
Weland: 06.600.4327.0
ZF: V3AE9054
Documents
Click to view product spec sheet:
