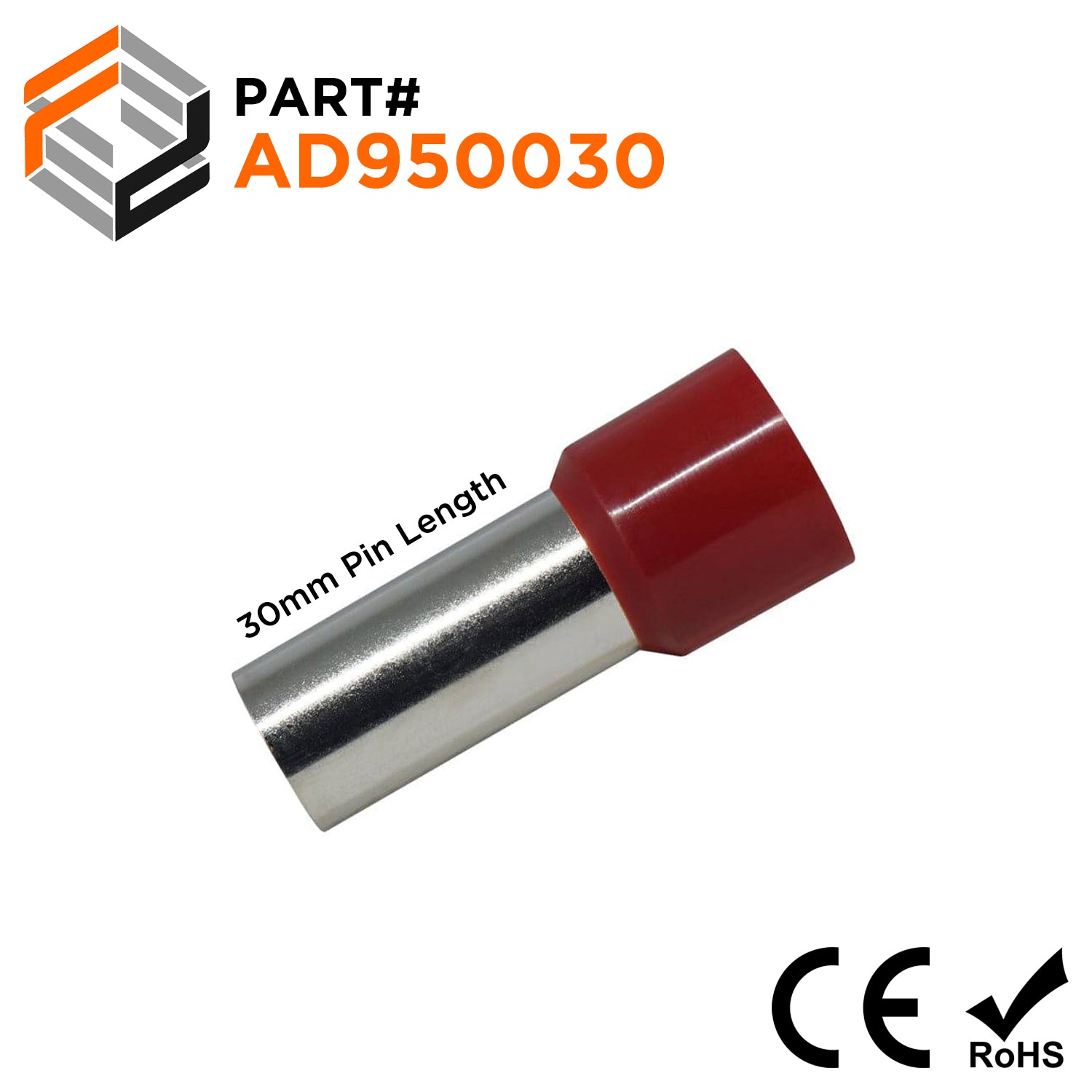

3/0 AWG (30mm Pin) Insulated Ferrules - Red

Original price $17.56 - Original price $17.56
Original price
$17.56
$17.56 - $17.56
Current price $17.56
SKU AD950030
Availability:
in stock, ready to be shipped
Pack Quantity: 25 Pieces
true
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 3/0 AWG
Color: Red
L1: 49.5mm (1.95")
L2: 30.0mm (1.18")
D: 15.5mm (0.61")
D1: 14.8mm (0.58")
D2: 18.5mm (0.72")
UL Approved: Yes
CE Certfied: Yes
RoHS Compliant: Yes
Max Electrical Rating: 105oC (221oF) - 600 Volts
Max Electrical Current: 310A
Material: Tin-Plated Copper

Technical Drawing:


Cross References

Cross Reference Parts:
None:

Documents

Click to view product spec sheet:

Certifications:
UL Certification
Reach Certification
RoHS3 Certification

Videos

How to Crimp a Wire Ferrule?

COMPARE TO THESE PARTS:
