AT01408 - 26 AWG (8mm Pin) Insulated Ferrules - Brown

$14.81
SKU AT01408
Piece Quantity
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 26 AWG
Color: Brown

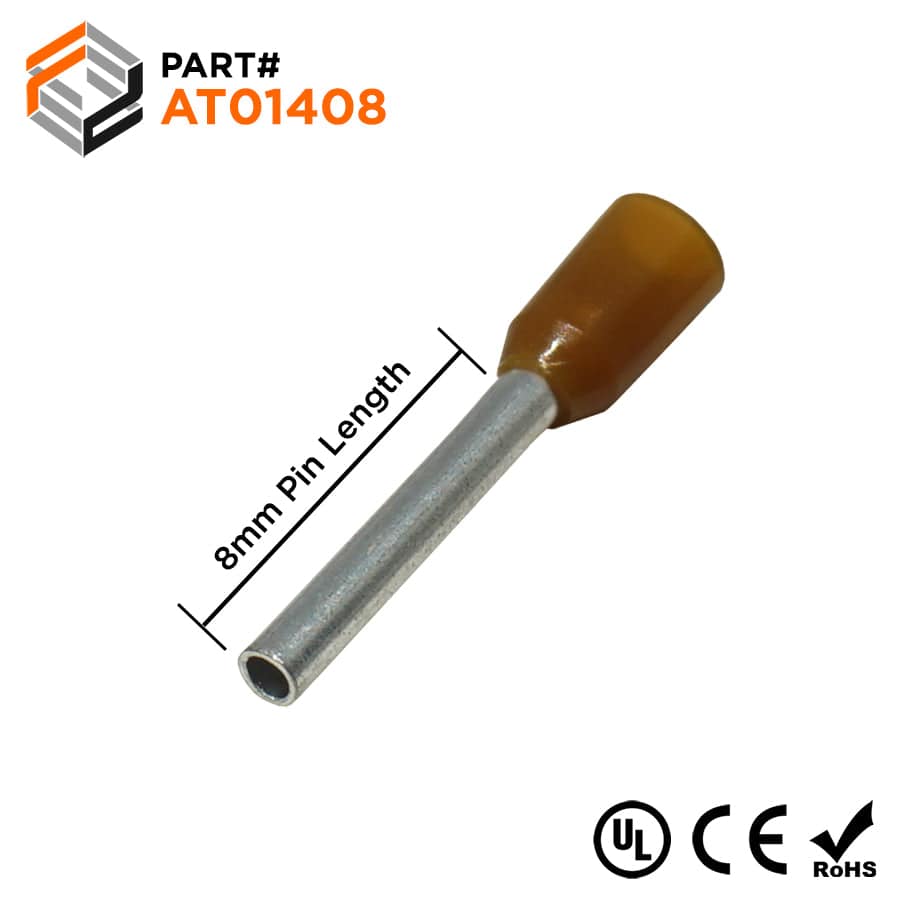

L1: 12.4mm (.488")
L2: 8.0mm (.315")
D: 1.12mm (.044")
D1: 0.82mm (.032")
D2: 1.5mm (.059")
Material: Tin-Plated Copper
Max Electrical Rating: 105°C (221°F) - 600 Volts
Max Electrical Current: 5.5A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:





Cross References

Cross Reference Parts:
ABB: XUS001805
American Electrical:
1183014
Greenlee:
166/8
Panduit:
FSF72-8-D
Tyco AMP:
966 292-2

Documents

Click to view product spec sheet:

Videos

Learn how to crimp a wire ferrule!
