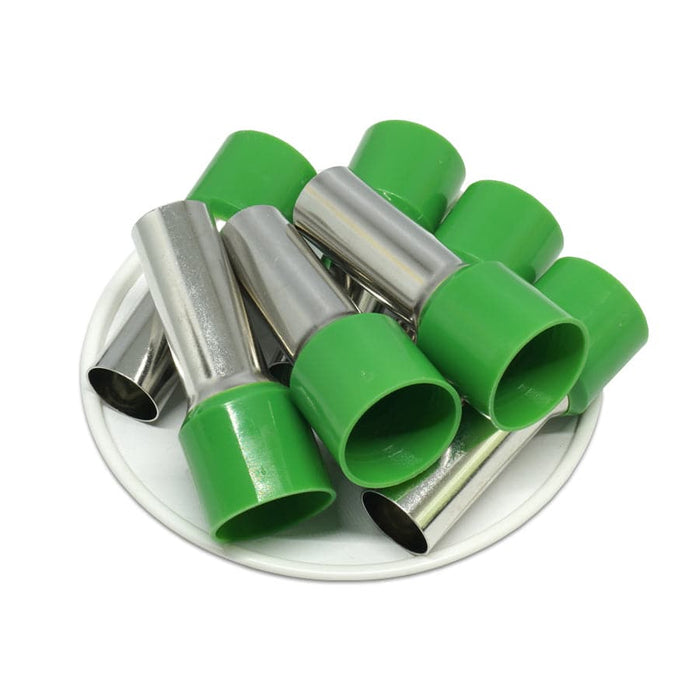

AW560030 - 0 & 1/0 AWG Insulated Ferrule - 30mm Olive Green
Original price
$17.70
-
Original price
$17.70
Original price
$17.70
$17.70
-
$17.70
Current price
$17.70
SKU AW560030
Availability:
in stock, ready to be shipped

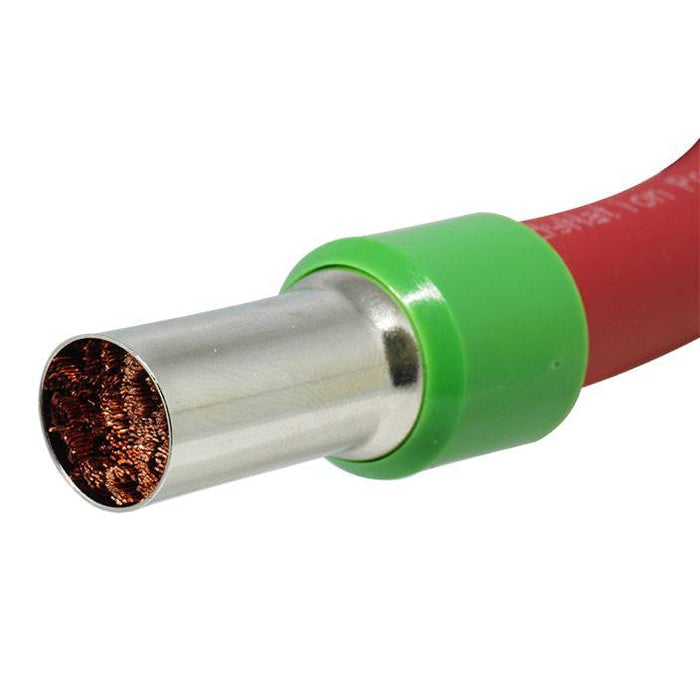

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Technical Drawing:
None
Click to view product spec sheet:
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | True 0 & 1/0 AWG (53.5mm²) |
| Color: | Olive Green |
| L1: | 46mm (1.81") |
| L2: | 30mm (1.18") |
| D: | 12.2mm (0.48") |
| D1: | 11.6mm (0.46") |
| D2: | 16.3mm (0.64") |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Rating: | 105°C (221°F) - 600 Volts |
| Max Electrical Current: | 230A |
| Material: | Tin-Plated Copper |
Technical Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
How to Crimp a Wire Ferrule?
