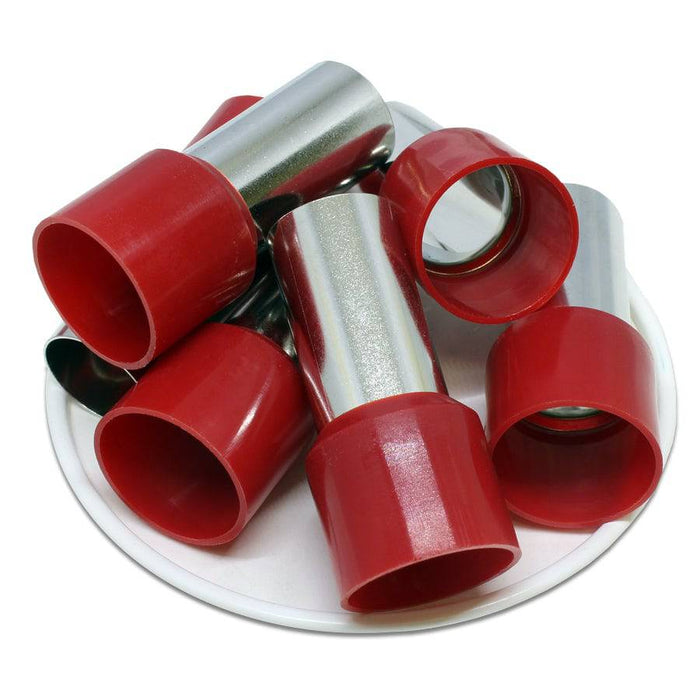

3/0 AWG (25mm Pin) Insulated Ferrules - Red
Precio original
$16.22
-
Precio original
$16.22
Precio original
$16.22
$16.22
-
$16.22
Precio actual
$16.22
SKU AD950025
Disponibilidad:
en stock, listo para ser enviado
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Technical Drawing:
ABB:XUSD01918
Altech Corp:2787.0
American Electrical:11252950
Crimp Supply:13A11023
GE Renewable Energy: 104W4400P027
McMaster-Carr:7950K67
Panduit:FSD90-25-Q
Phoenix Contact:3201853
Tyco AMP:4-966 292-0
Weidmuller:9028210000
ZF:V3AE1659
Certifications:
UL Certification
Reach Certification
RoHS3 Certification
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Wire Size: | 3/0 AWG |
Color: | Red |
L1: | 44.5mm (1.73") |
L2: | 25.0mm (0.98") |
D: | 15.5mm (0.61") |
D1: | 14.8mm (0.58") |
D2: | 18.5mm (0.72") |
UL Approved: | Yes |
CE Certfied: | Yes |
RoHS Compliant: | Yes |
Max Electrical Rating: | 105oC (221oF) - 600 Volts |
Max Electrical Current: | 310A |
Material: | Tin-Plated Copper |
Technical Drawing:
Cross References
Cross Reference Parts:ABB:XUSD01918
Altech Corp:2787.0
American Electrical:11252950
Crimp Supply:13A11023
GE Renewable Energy: 104W4400P027
McMaster-Carr:7950K67
Panduit:FSD90-25-Q
Phoenix Contact:3201853
Tyco AMP:4-966 292-0
Weidmuller:9028210000
ZF:V3AE1659
Documents
Click to view product spec sheet:Certifications:
UL Certification
Reach Certification
RoHS3 Certification
Videos
How to Crimp a Wire Ferrule?
